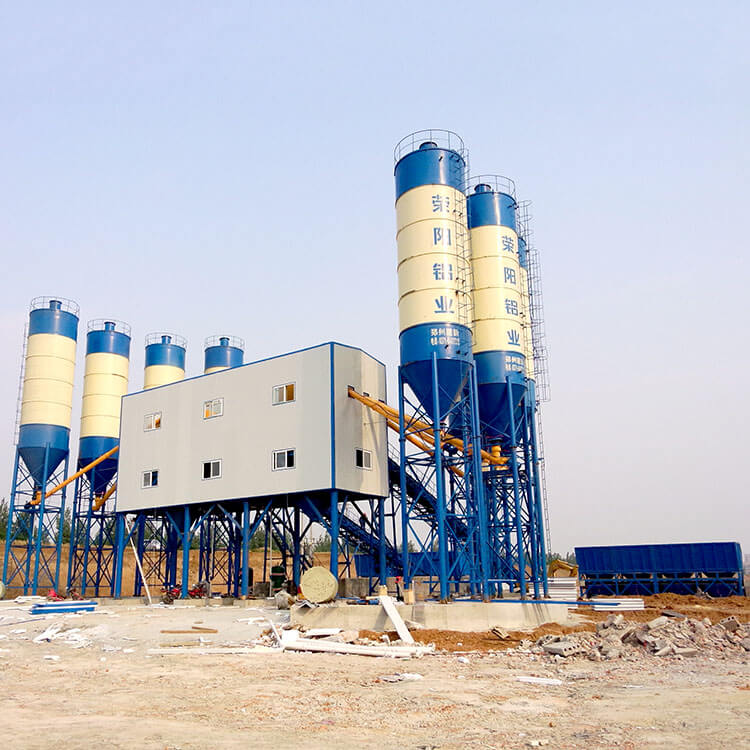

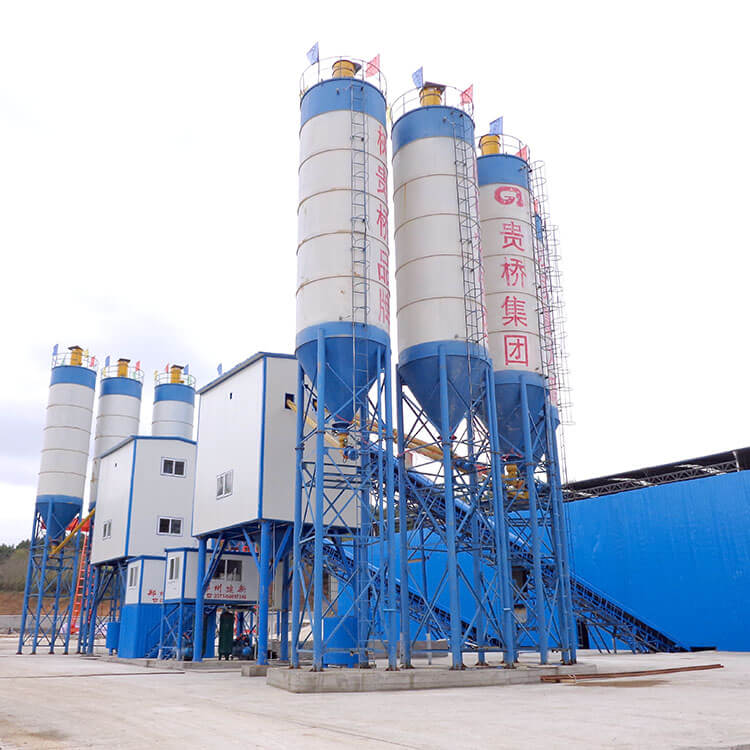

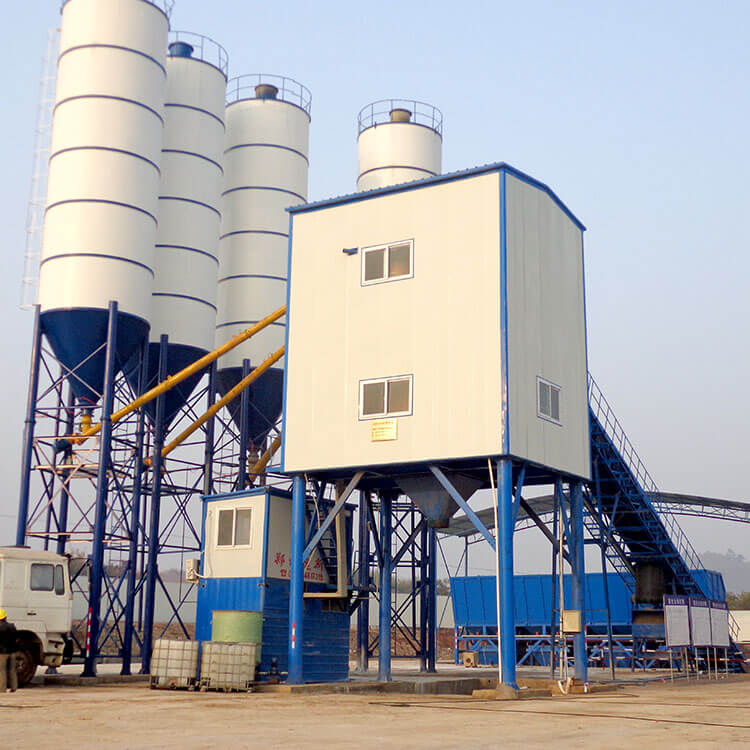

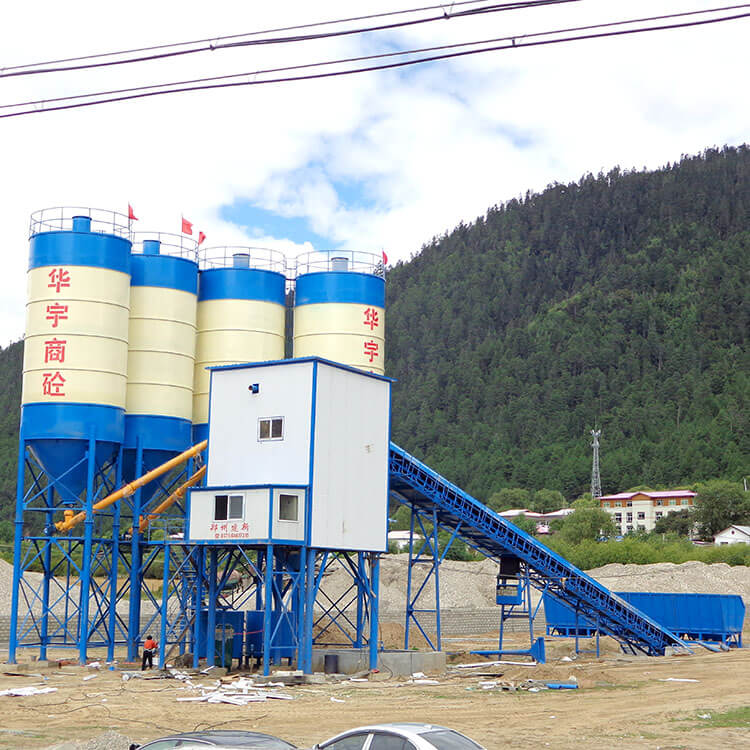

HZS120 Concrete Batching Plant

To build a new HZS120 concrete mixing plant, the complete set of equipment includes a two-horizontal forced-shaft mixer, batching machine, cement silo and screw conveyor, belt conveyor, and computer control room.


Equipment introduction:

HZS120 concrete mixing station, the entire set of equipment including two-position forced shaft mixer, batching machine, cement warehouse and screw conveyor, conveyor belt, computer control room. The JS2000 twin-shaft forced mixer is a compulsory, high-efficiency equipment that can produce a variety of concrete such as plastic and dry hard concrete. It has high production efficiency, short mixing time, and beautiful appearance. It is widely used in construction of large and medium-sized buildings and roads. Bridges and precast plants for the production of concrete products are ideal equipment for the production of commercial concrete. The estimated productivity of the concrete mixing plant is 120m3/h, the power of the mixing master is 74KW, the nominal capacity of the mixer is 2000L, the number of bins of the batching machine is 4 cells, the batching capacity is 3200L, 3×100t, and the capacity of the silo is measured. Accuracy (0 ~ 1200) ± 1% kg, admixture weighing range and accuracy (0 ~ 50) ± 1% kg, aggregate weighing accuracy of ± 2%, unloading height of 3.8 meters, the total installed power is 179.5KW to meet production requirements.

After years of development, the HZS120 concrete mixing plant is a product developed by Jianxin to integrate the advantages and advanced technologies of various models at home and abroad, combined with the company’s experience in producing concrete mixing equipment for many years. It is a fully automatic concrete mixing equipment consisting of batching device, aggregate conveying device, powder conveying device, water supply additive system, metering system, stirring system, electric control system and air control system. With the characteristics of reasonable structure, excellent performance, reliable work, convenient operation and accurate measurement, it is applicable to the production of large-scale projects such as roads, airports, ports, hydropower and other large-scale projects and prefabricated components, and commercial concrete, and is widely used in various projects. Construction in progress.

Main details:

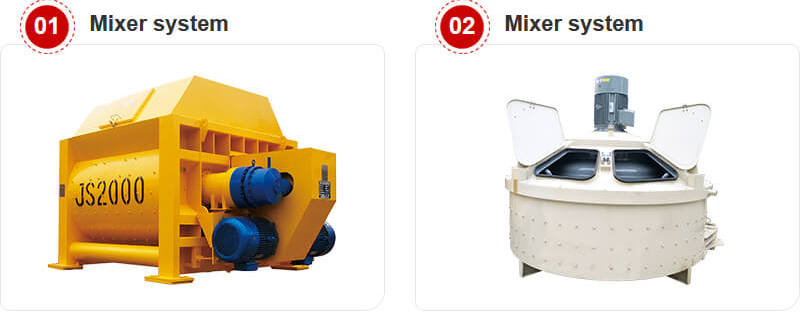

1、Mixer system
The 2000 concrete mixer is mainly divided into gate valve concrete pump and S valve concrete pump, but according to the structure, it can be divided into piston type, squeeze type, and hydraulic diaphragm type. The pump body is installed on the chassis of the car. The telescopic or inflexible placing boom forms a pump truck, which is mainly used in housing construction.
2、Mixer system
The MPC2000 vertical shaft planetary mixer adopts a special reducer device and vertical shaft planetary mixing design. Its mixing arm runs like a planet. It has the characteristics of omni-directional mixing without dead corners. Its mixing blades can also be used according to the wear condition. Ensure the low failure operation of the equipment and the efficient use of wearing parts.

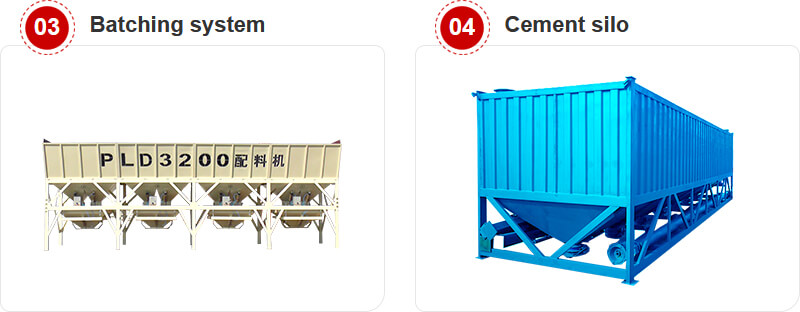

3、Batching system
PLD3200 concrete batching machine model: PLD3200 three-storey batching machine, PLD3200 four-storey batching machine, often used as an ideal supporting batching device in large-scale commercial concrete mixing plants. The machine is suitable for mixing stations assembled on the construction site, and can be made into four or more buckets according to user needs.
4、Cement silo
The cement silo is divided into three types: flake cement silo, integral cement silo, and horizontal cement silo. The upper and lower parts of the cement silo are equipped with level gauges and dust removal systems; in order to prevent the powder from arching, a blower is installed at the cone of the silo Arch breaking device; it can be designed as a sheet cement warehouse, which is convenient to transport and easy to use.

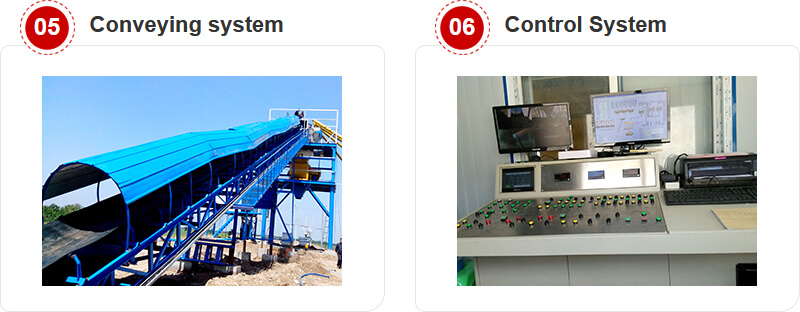

5、Conveying system
The screw conveyor adopts high-quality steel pipe with good rigidity; high-quality gearbox, heavy-duty design, large torque and low noise. Belt conveyors are generally used as aggregate conveying equipment for medium and large concrete mixing plants. They have the characteristics of strong conveying capacity, long conveying distance, simple structure and easy maintenance.
6、Control System
The center of the 120 concrete mixing plant is the control system. The whole machine adopts computer control, which can be controlled automatically or manually. The operation is simple and easy to master. Dynamic panel display, can clearly understand the operation of each component, and can store and print report data.

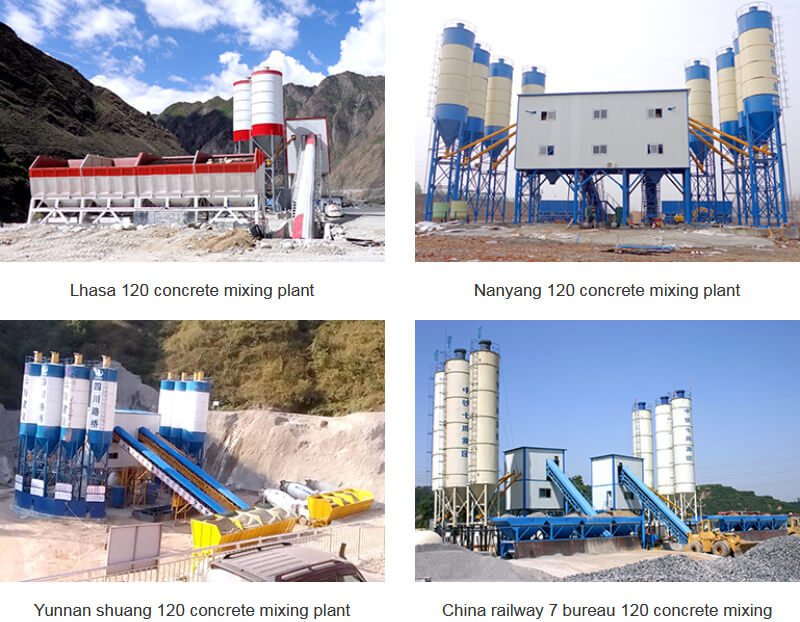

hzs120 concrete batching plant 6hzs120 concrete batching plant 7 hzs120 concrete batching plant 8 hzs120 concrete batching plant 9
