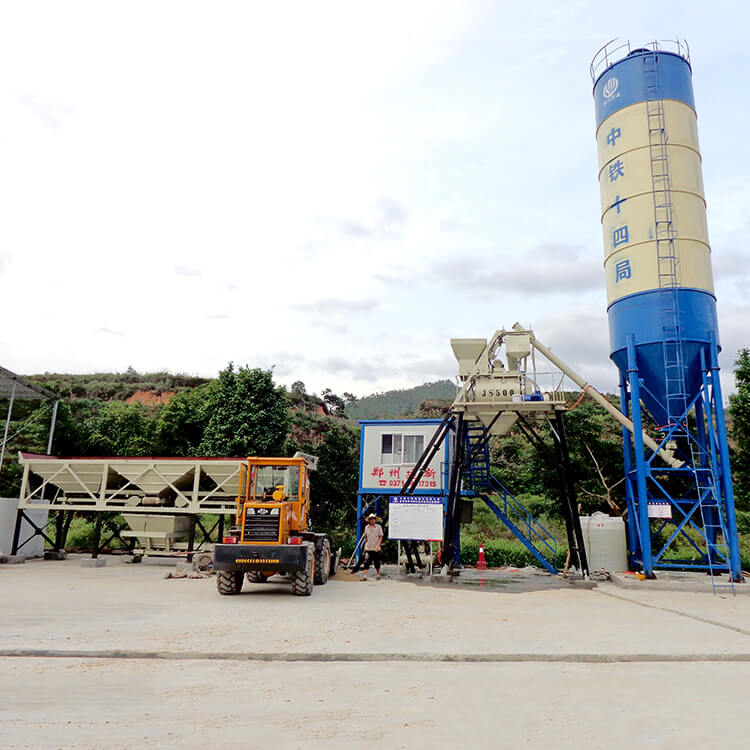

HZS25 Concrete Batching Plant

Jianxin HZS25 concrete mixing plant is a compulsory, high-efficiency equipment that can produce plastic, dry concrete and other types of concrete. It has high production efficiency and is widely used in large and medium-sized building construction, road and bridge engineering, and precast plants for the production of concrete products. It is an ideal equipment for producing commercial concrete.


Equipment introduction:

The base container-free mixing plant is a new mixing station equipment introduced by Zhengzhou Jianxin Machinery. It is also composed of a stirring system, a control system, a material storage system, a weighing system, and a conveying system. The main components that make up the mixing station are distributed among several containers, and normal concrete mixing work can be started by directly putting together several containers. Outstanding environmental performance, convenient transportation and simple installation are suitable for the concrete mixing supply of various types of hydropower, highways, ports, airports, bridges and other construction projects, as well as the construction of commercial concrete mixing stations.

Main details:

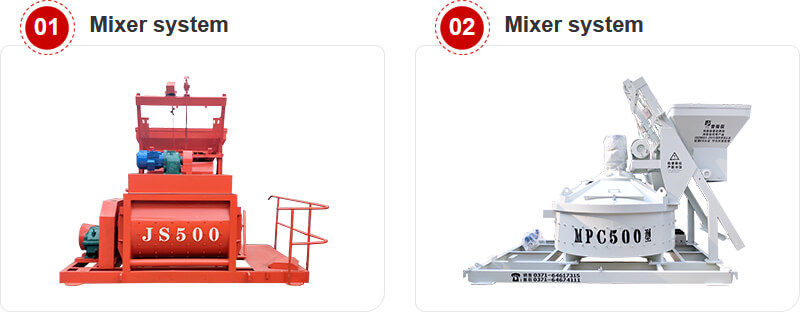

1、Mixer system
JS500 concrete mixer mixing system consists of: motor, belt wheel, reducer, open gear, agitator, oil supply device and other components.Is a high efficiency model, very wide application.The design structure of the product is reasonable, the layout is novel, the technology is advanced, the stirring is even, the use and maintenance is convenient.
2、Mixer system
The mixing system of the MPC500 vertical shaft planetary mixer is composed of: the mixing arm and its blades make planetary motion, the mixing track is continuous, the mixing motion is violent, and the homogeneity is good; the angle of the mixing blade is reasonable, the mixing efficiency is high, and the wear of the liner and blades is reduced

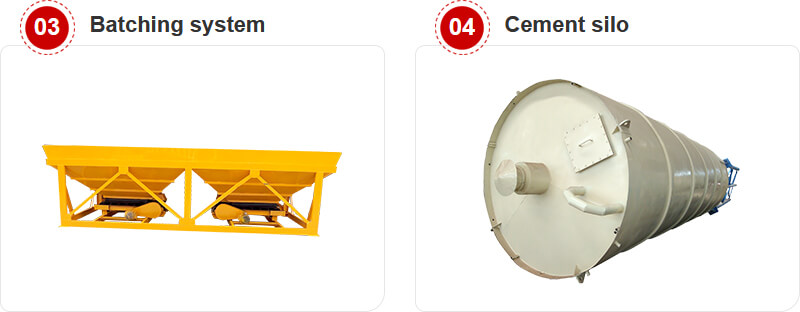

3、Batching system
PLD800 concrete batching machine is used in concrete mixing station. The concrete batching machine is fed by belt machine. The weighing method is lever plus single sensor, which is accurate in measurement.The weighing method is sensor weighing, which can measure four kinds of aggregate separately to improve the accuracy of batching.\

4、Cement silo
The cement silo is divided into three types: flake cement silo, integral cement silo, and horizontal cement silo.  in order to prevent the powder from arching, an arch breaking device is installed at the cone part of the silo; it can be designed as a bolted cement silo, which is convenient to transport and easy to use.

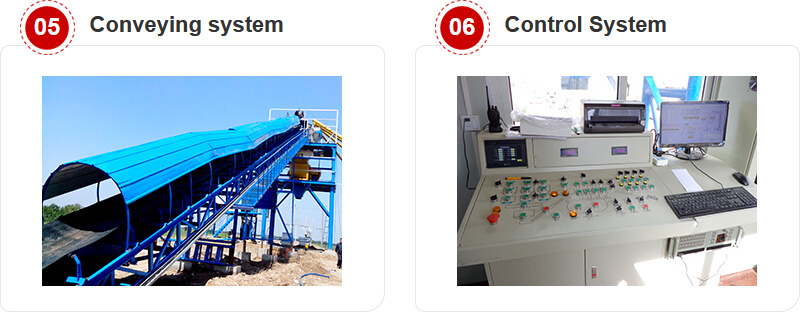

5、Conveying system
The aggregate conveying system adopts the lifting bucket feeding method. The big advantage is that it occupies a small space and saves land resources. The belt conveyor is an ideal efficient continuous transportation equipment, which has the advantages of long transportation distance, large transportation volume.

6、Control System
The core of 25cbm concrete mixing plant is the control system. The whole machine adopts computer control, which can be controlled automatically or manually. The operation is simple and easy to master. Dynamic panel display can clearly show the operation of each component, and can store and print report data.

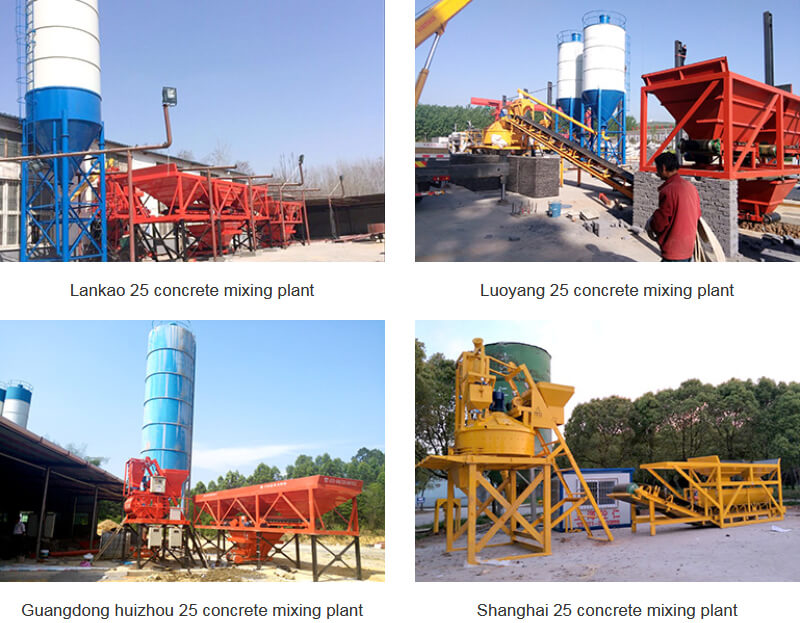

hzs25 concrete batching plant hzs25 concrete batching plant 6 hzs25 concrete batching plant 7 hzs25 concrete batching plant 8
