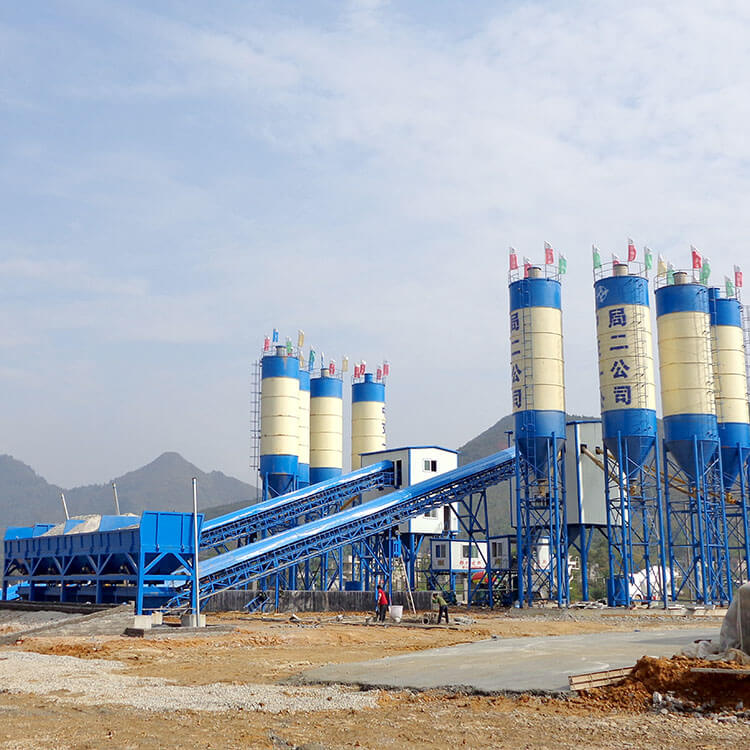

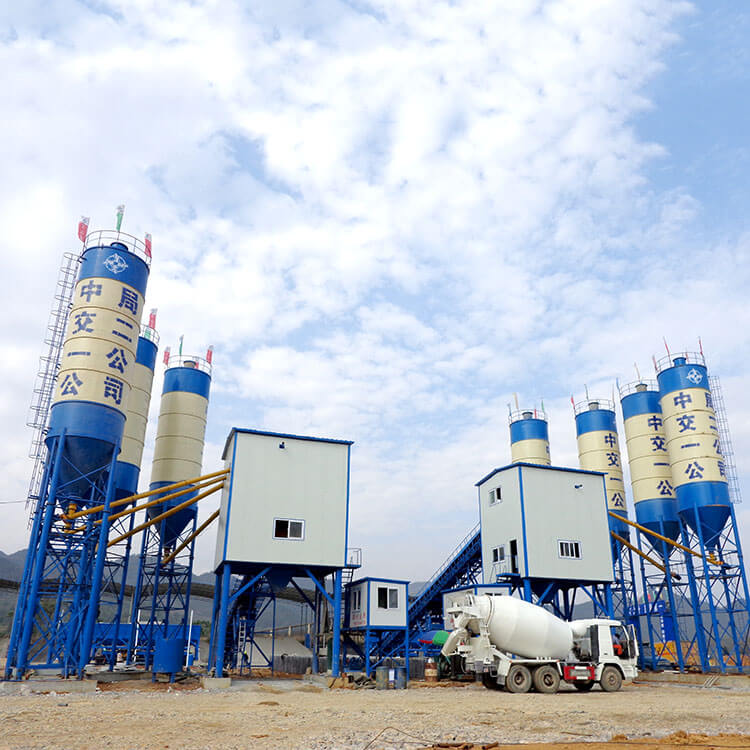

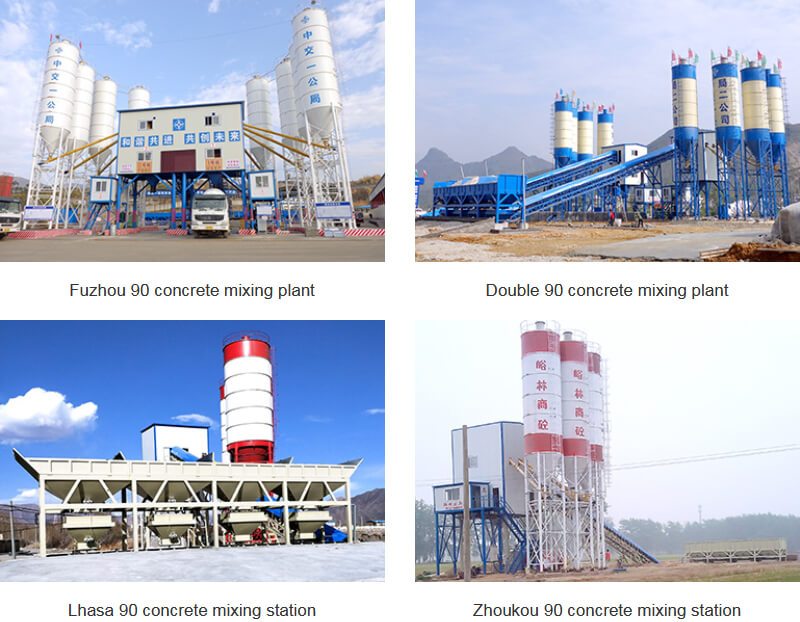

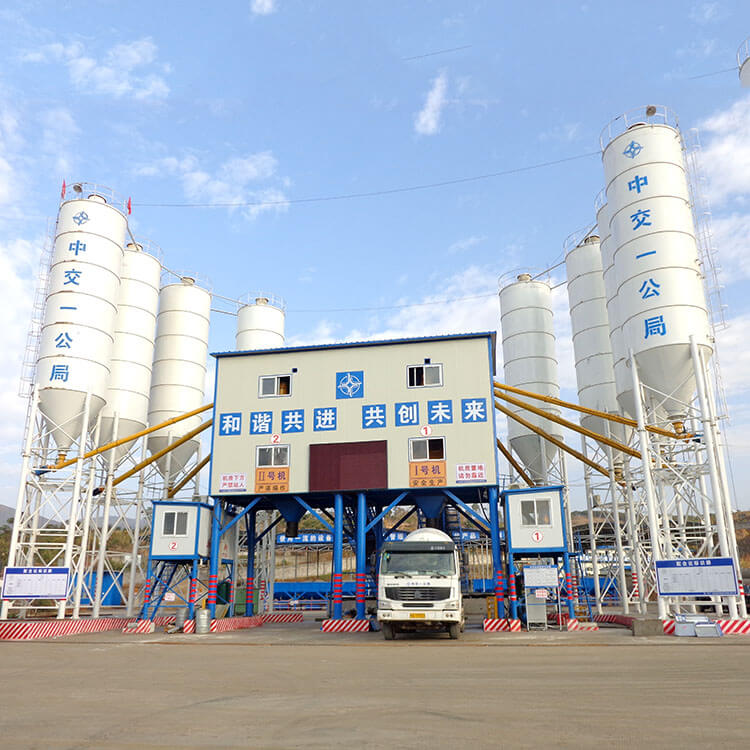

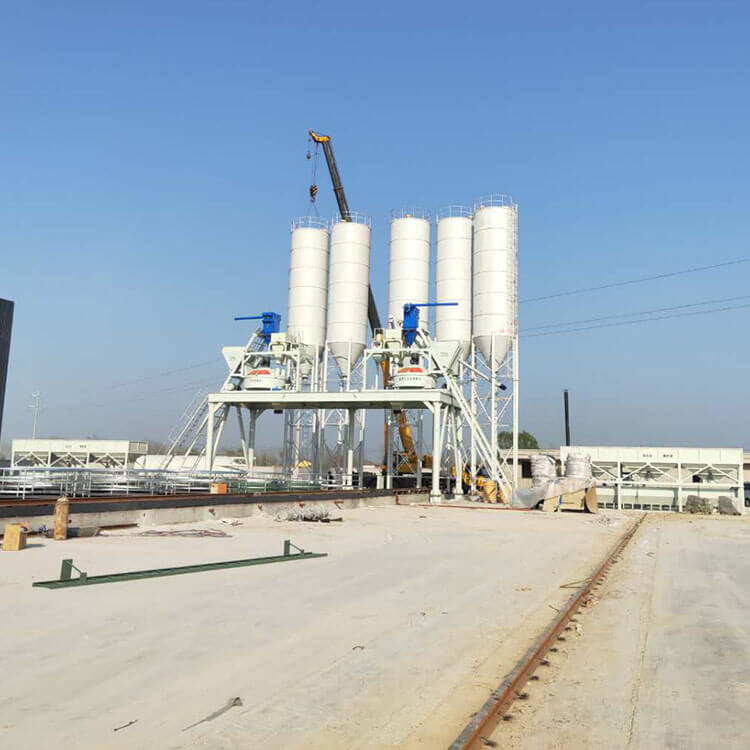

HZS90 Concrete Batching Plant

The theoretical production rate of Jianxin HZS90 concrete mixing plant is 90m3/h, also called 1.5 m3 mixing plant. It is an economical mixing equipment that our company has simplified based on the advantages and technology of mixing plant and mixing plant.


Equipment introduction:

JIANXIN The theoretical productivity of the HZS90 concrete mixing plant is 90m3/h, which is also called a 1.5-yard mixing plant. This is an economical mixing equipment that is based on the advantages and advanced technologies of the company’s mixing plant and mixing plant. This series of mixing stations guarantees Under the premise of engineering efficiency, the maximum savings of capital, and equipment reliability; modular structure design, make installation, demolition more convenient, safe, comfortable, reliable, product mixing effect is good, high production efficiency. The system is safe and reliable and easy to maintain. The concrete mixing plant, which can be used in large-scale projects, is also applied in medium-sized projects. It is a widely used mixing station equipment and is applicable to roads, airports, ports, hydropower and other large-scale projects and prefabricated components, and commercial concrete. The production of such large quantities of concrete is widely used in various engineering constructions.

Main details

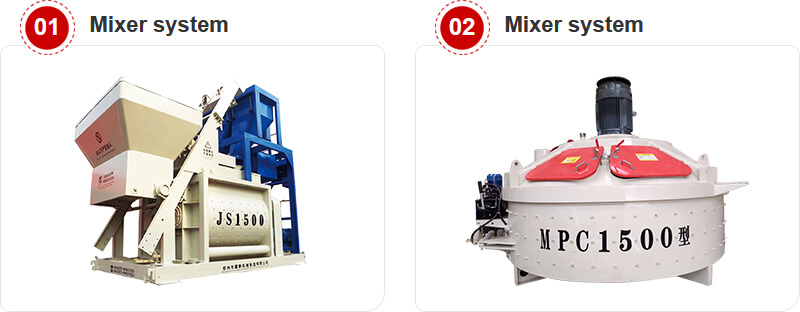

1、Mixer system
JS1500 forced concrete mixer output is 1.5 cubic meters each time, also known as 1.5 cubic meter compulsory mixer. It is a high-efficiency compulsory mixer developed by our factory based on Sicoma’s compulsory mixer and the using characteristics of domestic users. Usually it is used as the mixer of HZS75 mixing plant or HZS90 mixing plant.
2、Mixer system
MPC1500 vertical shaft planetary mixer is also called 1.5cbm planetary concrete mixer. Jianxin Machinery’s vertical shaft planetary mixer adopts advanced technology. The whole machine has stable transmission, high mixing efficiency, high mixing uniformity, unique sealing device without slurry leakage problem,and large space for maintenance.

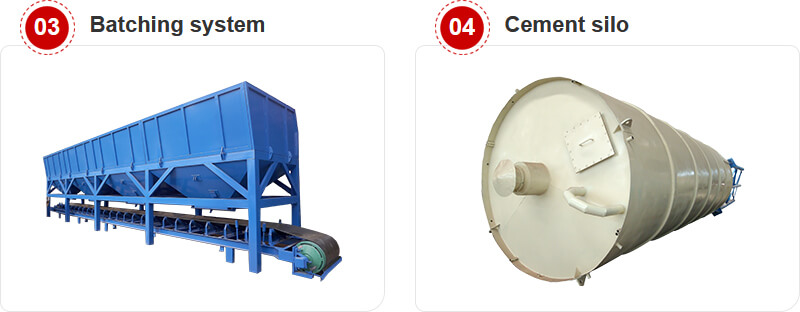

3、Batching system
The PLD2400 concrete batching machine is an efficient and intelligent batching machine launched by Jianxin Machinery according to many years of research and domestic engineering construction requirements. The capacity of the PLD2400 storage hopper is 2400L, and the batching material quantity can be 2-5 kinds.
4、Cement silo
The cement silo is divided into three types: flake cement silo, integral cement silo, and horizontal cement silo. In order to prevent the powder from arching, an arch breaking device is installed at the cone part of the silo; it can be designed as a bolted cement silo, which is convenient to transport and easy to use.

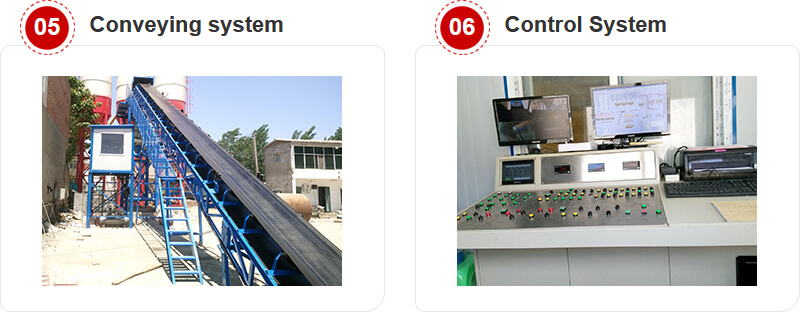

5、Conveying system
The aggregate conveying system adopts the lifting bucket feeding method. The big advantage is that it occupies a small space and saves land resources. The belt conveyor is an ideal efficient continuous transportation equipment, which has the advantages of long transportation distance, large transportation volume.
6、Control System
The core of 90cbm concrete mixing plant is the control system. The whole machine adopts computer control, which can be controlled automatically or manually. The operation is simple and easy to master. Dynamic panel display can clearly show the operation of each component, and can store and print report data.

hzs90 concrete batching plant 6 hzs90 concrete batching plant 7 hzs90 concrete batching plant 8 hzs90 concrete batching plant 9
