WBZ300 Stabilized Soil Mixing Plant

The WBZ300 stabilized soil mixing plant (mixing station) production line developed and manufactured by Jianxin is an economical and practical stabilized soil mixing equipment, which is widely adapted to the construction needs of high-grade highways, urban roads, airstrips, docks, sports fields and other basic materials.


Equipment introduction:

The Jianxin made WBZ300 Stabilized Soil Mixing Station (mixing plant) production line is an economical and practical stable soil mixing plant with an output of 300 tons per hour and is widely adapted to high-grade highways, urban roads, airstrips, and piers. Base materials such as sports grounds are needed for construction. The product structure is mature, the specifications are complete, the performance quality is stable and reliable. Since its since 1991, it has enjoyed a high reputation in the market with its strong technical foundation, superior product quality, satisfactory customer service, and products throughout the country. It shares the nearly 80% of the market . And it’s exported to Philippines. Afghanistan. Africa and other countries.

Main details:

1、Mixer system
WBZ300 stabilized soil mixing plant the main machine adopts a no-liners structure, which greatly increases the gap between the mixing blade and mixer drum;When the mixer working, a non-moving mixed material layer will be formed in the gap, which will stay on the drum, act as a lining board, protecting the mixer drum from abrasion.
2、Batching system
Aggregate batching machine of WBZ300 stabilized soil mixing plant characteristics is as following:After aggregate storage hopper discharged, the raw material is conveyed by the flat belt conveyor. Adopt a lever and a single sensor to weighing. Four kinds aggregates can be separately measured in the same time to improve the batching accuracy

3、Convey system
Screw conveyors can transport cement, fly ash, mineral powder, dry sand, etc., and are widely used in chemical, building materials, food, metallurgy, power and other industries.Belt conveyor is an ideal high-efficiency continuous material convey equipment. Belt conveyor advantages:long transportation distance, large transportation volume, etc.

4、Control System
The center of WBZ300 stabilized cement soil mixing plant is the control system. Adopts computer control method, which automatically or manually modes are all availiable.Dynamic panel display can clearly understand the operation of each component, and can store and print report data.

5、Cement Silo
Cement silo include three types: Bolted cement silo, Welding cement silo, and Horizontal cement silo.The upper and lower parts of the cement silo are equipped with level meters and dust clean systems;An arch breaking device is installed at the bottom cone of the silo to prevent the powders arch in the silo.

6、Dust clean system
There is an axial fan set on top of the pulse dust collector. When the axial fan works, negative pressure is formed inside and outside the dust filter bag. Air passes through the pores of the dust bag and is discharged into the atmosphere through the axial fan. The dust is blocked by the dust bag and attached to the dust bag.

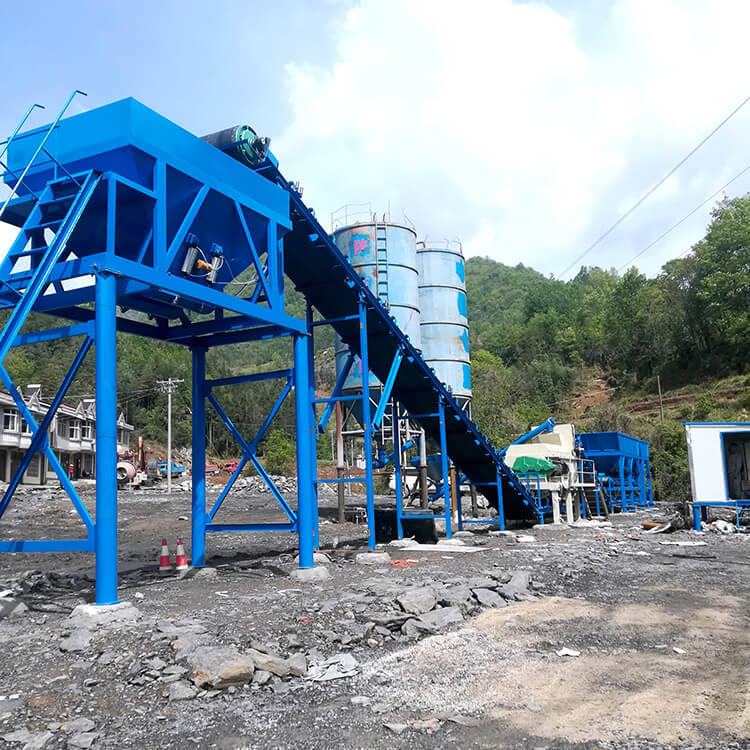

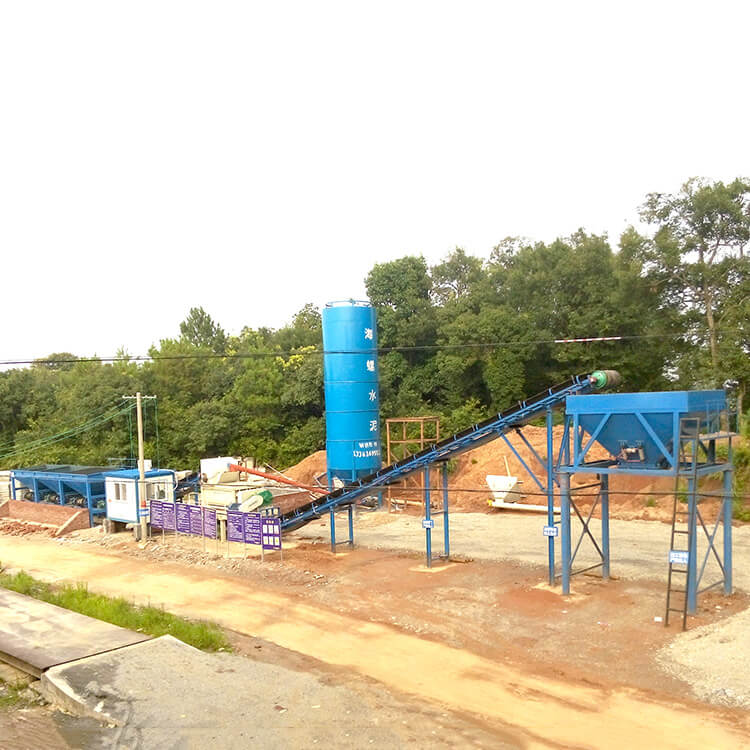

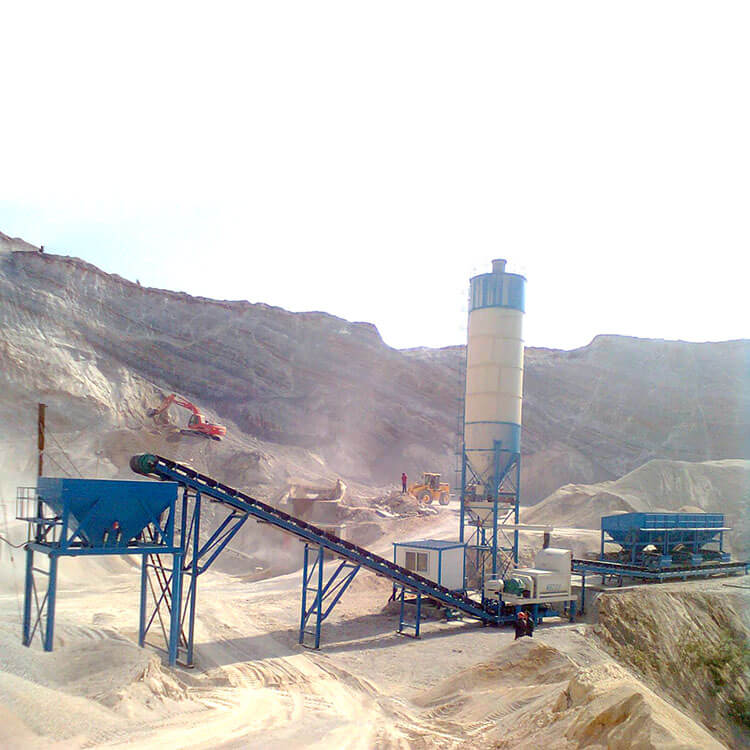

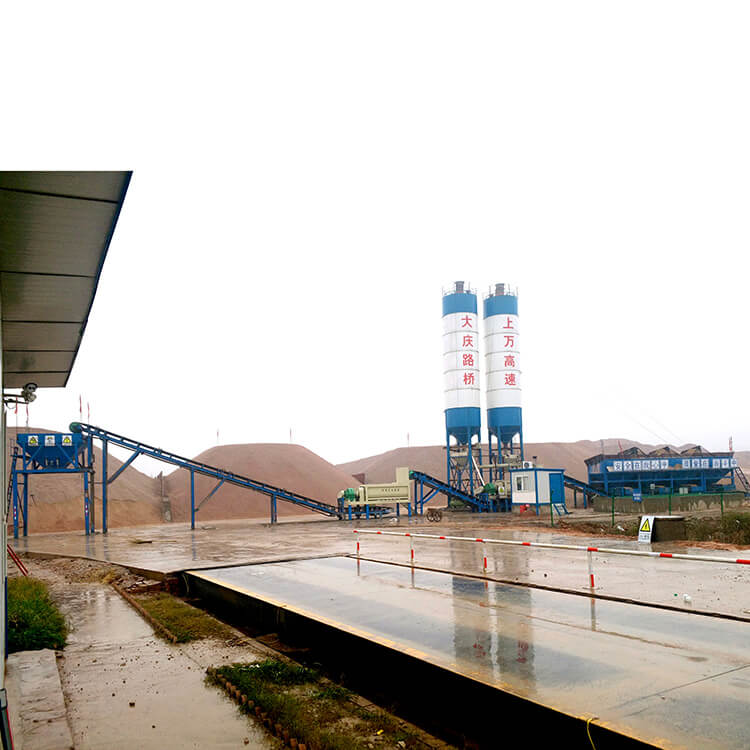

wbz300 stabilized soil mixing plant 6 wbz300 stabilized soil mixing plant 7 wbz300 stabilized soil mixing plant 8 wbz300 stabilized soil mixing plant 9
