Without Base Concrete Batching Plant

As a new type of mixing plant equipment, the foundation-free concrete mixing plant has a series of processes of construction-free design and basic equipment, which can provide our customers with great convenience for station construction.


Equipment introduction:

The base container-free mixing plant is a new mixing station equipment introduced by Zhengzhou Jianxin Machinery. It is also composed of a stirring system, a control system, a material storage system, a weighing system, and a conveying system. The main components that make up the mixing station are distributed among several containers, and normal concrete mixing work can be started by directly putting together several containers. Outstanding environmental performance, convenient transportation and simple installation are suitable for the concrete mixing supply of various types of hydropower, highways, ports, airports, bridges and other construction projects, as well as the construction of commercial concrete mixing stations.

Main details:

1、Mixer system
JS double-shaft forced concrete mixer can mix plastic concrete, dry hard concrete, lightweight aggregate concrete, fluid concrete and various mortars. And the forced concrete mixer has the advantages of uniform mixing, short mixing time, high working efficiency, simple operation, low energy consumption, low noise and the like.
2、Mixer system
The MPC vertical shaft planetary mixer is composed of: the mixing arm and its blades make planetary motion, the mixing track is continuous, the mixing motion is intense, and the homogeneity is good; the angle of the mixing blade is reasonable, the mixing efficiency is high, and the wear of the liner and blades is reduced.
3、Batching system
The PLD concrete batching machine produced by Zhengzhou Jianxin Machinery adopts electronic weighing, microcomputer control, digital display, and console operation. It has rapid response, accurate measurement and precise weighing. It has a modular design and flexible installation. It can be used with concrete mixers.
4、Cement silo
The cement silo is divided into three types: flake cement silo, integral cement silo, and horizontal cement silo. In order to prevent the powder from arching, a blower is installed at the cone of the silo Arch breaking device; it can be designed as a sheet cement warehouse, which is convenient to transport and easy to use.
5、Conveying system
The aggregate conveying system adopts the lifting bucket feeding method. The big advantage is that it occupies a small space and saves land resources. The belt conveyor is an ideal efficient continuous transportation equipment, which has the advantages of long transportation distance, large transportation volume, continuous transportation.
6、Control System
The center of the foundation-free concrete mixing plant is the control system. The whole machine adopts computer control, which can be controlled automatically or manually. The operation is simple and easy to master. Dynamic panel display, can clearly understand the operation of each component, and can store and print report data.

without base concrete batching plant 6 without base concrete batching plant 7 without base concrete batching plant 8 without base concrete batching plant 9

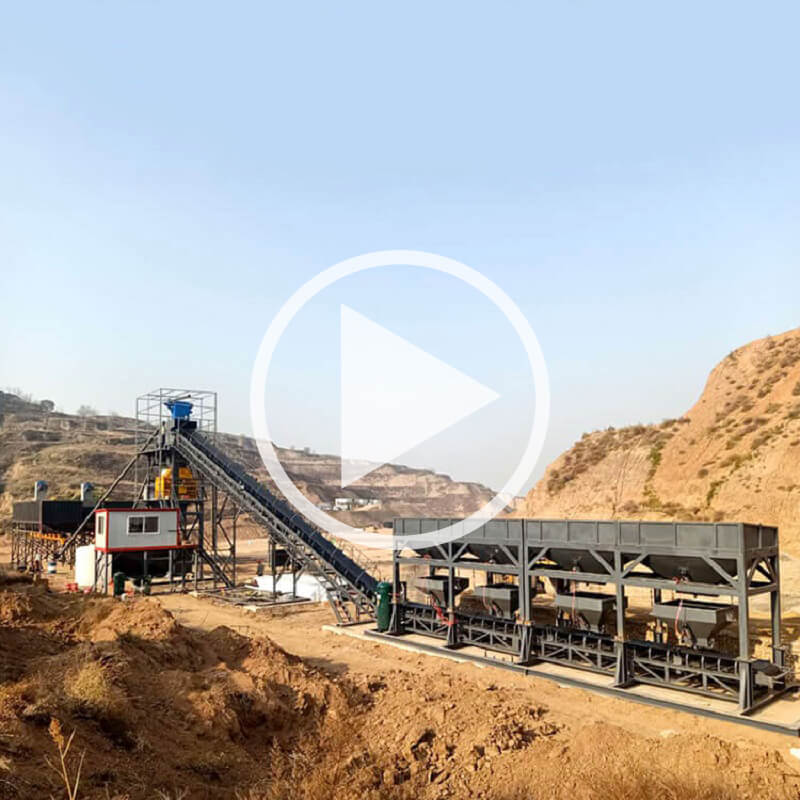

without base concrete batching plant a
